The CorFLO® Reactor is a high-performance static mixer reactor engineered for continuous processing where precise mixing, thermal control, and residence time uniformity are critical. Built around a corrugated tubular architecture with integrated static mixer elements, CorFLO® achieves efficient radial mixing and enhanced heat transfer without any mechanical agitation. This passive mixing approach delivers consistent reaction conditions while eliminating moving parts and associated maintenance challenges.
Unlike conventional smooth tubular systems, the CorFLO® reactor continuously divides, rotates, and recombines fluid streams along its length, resulting in a narrow residence time distribution and superior control over reaction kinetics. Its design minimizes axial dispersion, prevents hot spots, and enables uniform temperature profiles even for fast or temperature-sensitive chemistries. Available from laboratory to production scale, CorFLO® provides a robust, scalable solution for industries transitioning from batch to continuous flow using advanced static mixer technology.

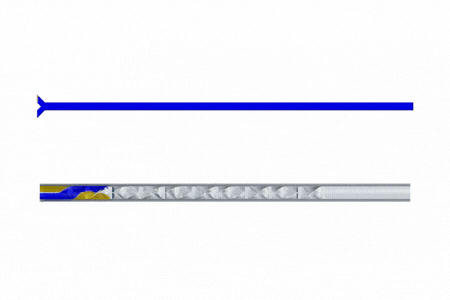

Corrugated tubing combined with precision static mixer elements delivers efficient radial mixing and uniform reaction conditions without mechanical agitation or moving parts.
Optimized internal geometry minimizes axial dispersion, ensuring predictable residence time and consistent reaction performance across the entire reactor length.
Enhanced heat transfer prevents localized overheating, enabling safe and stable continuous operation for temperature-sensitive and highly exothermic reactions.

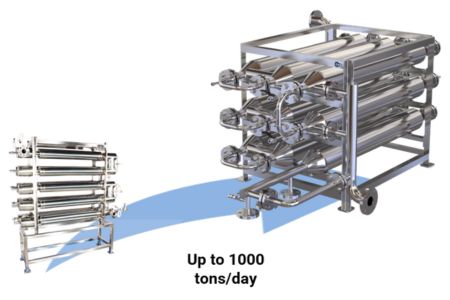

Easily scaled by length, diameter, or numbering-up, with high pressure and temperature capability for reliable industrial operation.
Amar Flow Laboratory, in collaboration with a multinational agrochemical company successfully developed a proof-ofconcept trial for the nitration of a substituted aromatic compound continuously. This innovative continuous flow process presents several advantages over traditional batch processing methods, promising significant improvements in efficiency, product quality, and safety.
Read MoreThe CorFLO® reactor is used for continuous processing of liquid-phase and multiphase reactions where efficient mixing and thermal control are essential for reaction performance. As a static mixer reactor, it is widely applied to nitration, oxidation, polymerization, hydrogenation, epoxidation, halogenation, and other kinetically sensitive reactions. The reactor is particularly effective when uniform mixing must be maintained across laminar or transitional flow regimes, ensuring consistent reaction conditions and reproducible product quality during long continuous runs.
In the CorFLO® reactor, precision-engineered static mixer elements are integrated within a corrugated tubular geometry. As fluids pass through the reactor, these elements continuously divide, rotate, and recombine the flow, creating strong radial mixing without any mechanical agitation. The corrugations further promote controlled turbulence and renewal of the fluid interface. This passive mixing mechanism ensures homogeneous concentration and temperature profiles while eliminating moving parts, seals, or external energy input for mixing.
Conventional smooth tubular reactors often experience poor radial mixing, especially under laminar flow conditions, leading to concentration gradients and uneven temperature distribution. CorFLO® overcomes these limitations by combining a corrugated tube design with internal static mixing elements. This results in a narrow residence time distribution, reduced axial dispersion, and uniform reaction conditions along the reactor length. As a result, CorFLO® delivers more predictable kinetics and improved selectivity compared to standard tubular reactors.
Yes. The CorFLO® static mixer reactor is well suited for highly exothermic reactions due to its enhanced heat transfer and uniform temperature profile. Continuous renewal of the fluid boundary layer improves heat removal to the reactor wall, minimizing hot spots and thermal gradients. This makes CorFLO® a safer alternative to batch reactors for reactions where uncontrolled heat release can lead to side reactions or safety risks.
CorFLO® reactors are available across a wide range of working volumes, from laboratory-scale units to large industrial systems. Depending on configuration and materials of construction, they can operate at elevated pressures (up to approximately 100 bar) and temperatures as high as 500°C. This broad operating window allows CorFLO® to be applied to both mild and severe process conditions, including high-temperature and high-viscosity systems.
CorFLO® reactors can be manufactured from SS316, Hastelloy C-276, and other corrosion-resistant alloys to suit aggressive chemical environments. Material selection is tailored to process requirements such as temperature, pressure, corrosion resistance, and compatibility with reactive or oxidative media, ensuring long-term durability and reliable performance.
Yes. The static mixer elements and corrugated geometry are specifically designed to promote efficient mixing even in viscous fluids and under laminar flow conditions. This makes CorFLO® particularly effective for systems where conventional tubular reactors fail to achieve homogeneous mixing, such as polymer melts, concentrated solutions, or high-viscosity reaction media.
CorFLO® static mixer reactors are widely used in pharmaceuticals, fine and specialty chemicals, polymers, coatings, adhesives, and advanced materials manufacturing. They are especially valued in continuous processes where reproducibility, low maintenance, and consistent product quality are critical, and where mechanical agitation is undesirable or impractical.
