Batch vs Continuous Flow for Slurry-Based Reactions: Which is Better?

In fine chemical and pharmaceutical manufacturing, handling slurry-based reactions—such as condensations and hydrogenations—poses unique challenges. As companies look to optimize efficiency, safety, and scalability, the choice between batch and continuous flow processes becomes critical.

This blog explores the technical and operational trade-offs between these two approaches, especially when solids or catalysts are involved.

Understanding Slurry Reactions

Slurry-phase reactions involve solid-liquid or gas-liquid-solid phases:

• Condensation reactions often produce precipitates or involve viscous intermediates.
• Hydrogenation reactions use solid catalysts (e.g., Pd/C or Raney Ni) and gaseous hydrogen.

Both can be complex to scale due to issues in mixing, filtration, and safety.

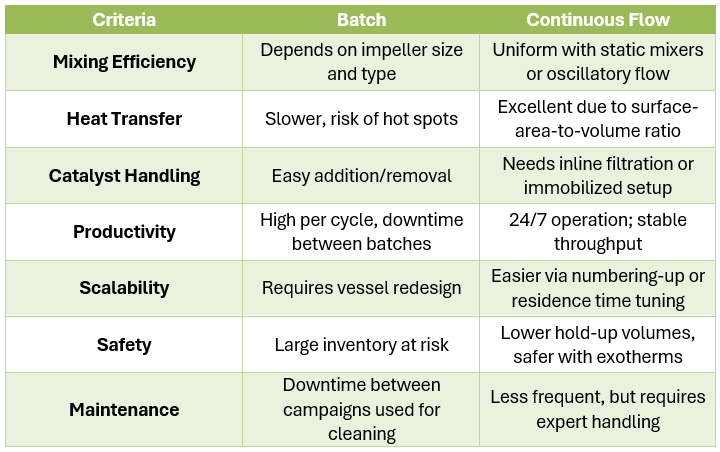

Batch vs Flow Processing – Side-by-Side for Slurries

Key Benefits of Continuous Flow in Slurry Reactions

• Superior Heat & Mass Transfer
  Static mixers and tube reactors handle exothermic hydrogenations with better thermal control, mitigating risks of thermal runaway.
• Inline Catalyst Management
  Use of cross-flow filters, centrifugal separators, or magnetic traps ensures continuous catalyst retention and product separation.
• Enhanced Safety
  Flow systems operate at small reactor volumes, minimizing accident severity. As shown in the risk matrix, batch systems rate “High” for thermal and inventory risk, while flow rates are Low to Medium.

Development Speed & Flexibility

According to the scale-up chart, batch systems can take 12–24 months from lab to commercial scale, while flow systems can be validated in 6–12 months. Continuous setups also allow:

• Modular pilot demonstrations
• Scalable architecture
• Inline PAT tools (FTIR/NIR)

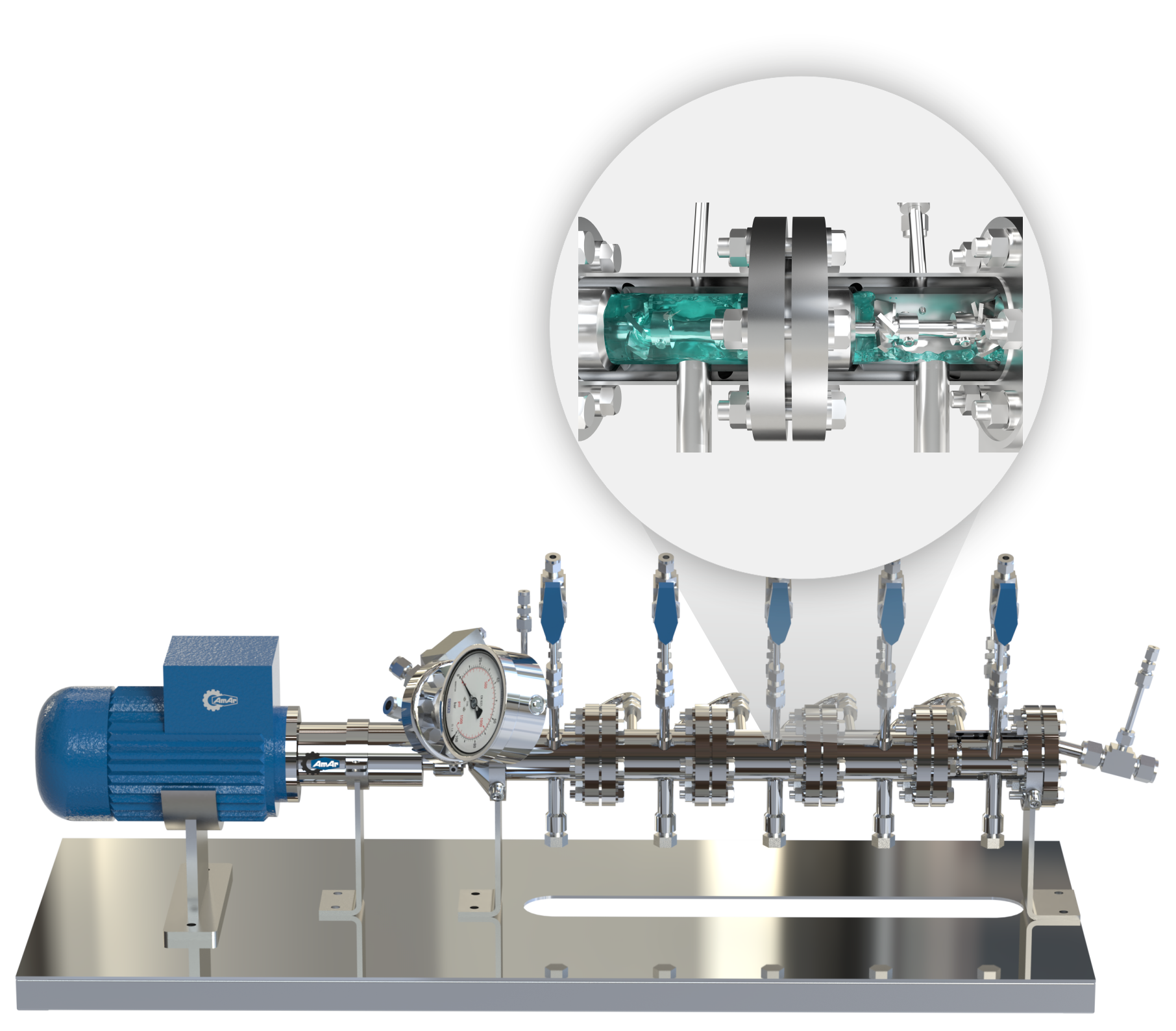

Example: SlurryFLO reactors by AmarFLO are specifically built for such applications, with anti-settling design and compatibility for viscous and solid-laden flows.

When to Choose What?

Choose Batch When:

• Frequent product changes
• Low annual volumes (<1000 kg/year)
• High variability in raw materials

Choose Flow When:

• Large volumes or dedicated campaigns
• High-pressure hydrogenations
• Environmental compliance is strict Hybrid?

Sometimes, the best choice is both. For instance, a hybrid approach might involve using a batch process for the initial condensation step, where complex reactants or variable raw materials are involved, followed by a continuous flow setup for subsequent hydrogenation or crystallization, where tighter control over reaction conditions and improved scalability offer significant advantages. This combination leverages the flexibility of batch operations and the efficiency and consistency of continuous processing.

Final Thoughts

Modern process development is no longer “either-or.” As strategically stated in industry guides, success lies in matching the process to the reaction complexity, safety profile, and business goals.

“Flexibility for future adaptations as technologies evolve is critical.” — Strategic Implementation
